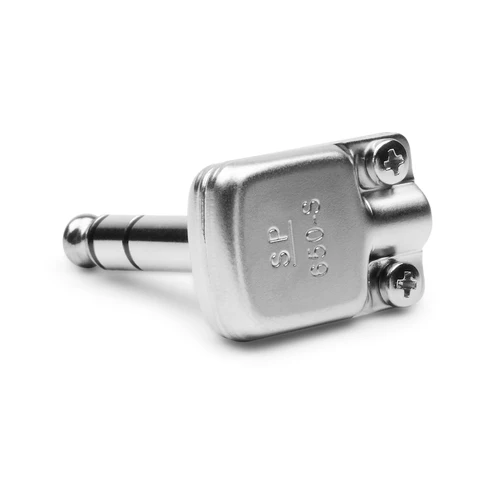

SquarePlug SP650-S, Right Angle 1/4" TRS Connector

SP650-S is the TRS variant of the SP600. It can accommodate cables up to 6.3mm OD, which provides with the SPX SERIES a unique TRS/XLR pairing solution for low profile balanced cable assemblies.

Features:

• Super low profile design for highest packing density.
• Unmatched strain relief and EMI protection: the SP series features a flat smooth cable channel that’s perfectly snug with the right sized cable providing equal pressure around the entire cable, thus insuring
• proper shielding continuity and effective strain relief action.
• Solder tabs for tip, ring and sleeve connections for quick and easy soldering and de-soldering.
• Serviceable, Heavy Duty all-metal construction with no plastic parts.
• Available in silver and all-black finish.

Specs:

• THICKNESS: 9.7 MM/ 0.38 IN
• WIDTH: 18.5 MM/ 0.73 IN
• HEIGHT: 28 MM/ 1.10 IN
• SECURES CABLES BETWEEN: 5.8 — 6.3 MM/ 0.22 — 0.25 IN
